MFS Undercut Table Drilling Machine (2 Head)
Product Name: Table Undercut Drilling Machine (2 Head)
Brand: MFS
Model No.: JR1084
Country of Origin : China
Usage: Used for drill the special hole for undercut anchor in Stone,Granite,Ceramic Tile.
Technical of Undercut Table Drilling Machine:
Voltage | AC220v | No Load Speed | 12000R/MIN |
Rated Power | 1.9KW*2 (2 Head) | Air Pressure | ≥0.8MPa |
Cooling Way | Water | Weight | 460KG/PCS |
Water Pressure | 3KG/CM2 | Max Vertical travel | 100mm |
Contral method | Automatic | Type of Drill bit | Electroplate Drill Bit |
Diameter of Hole | 7.2, 9.0, 11.0, 13.0 | Depth of Hole | 5mm-40mm |
Max Size of Marble | 2500*1500*40mm | Size | 2200*1400*1650 |

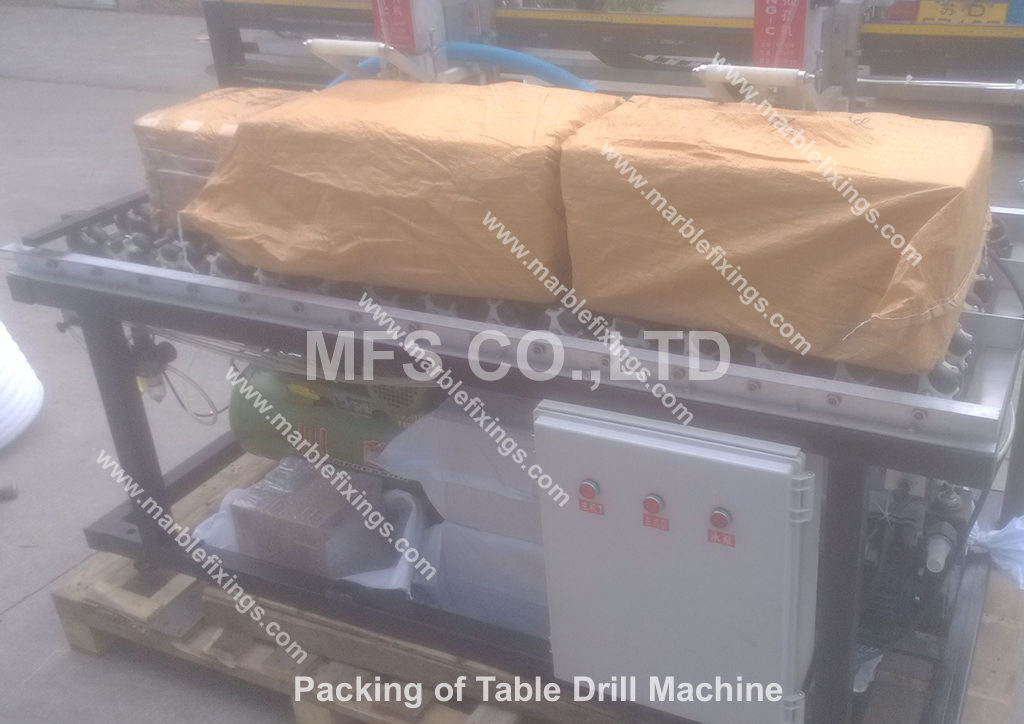

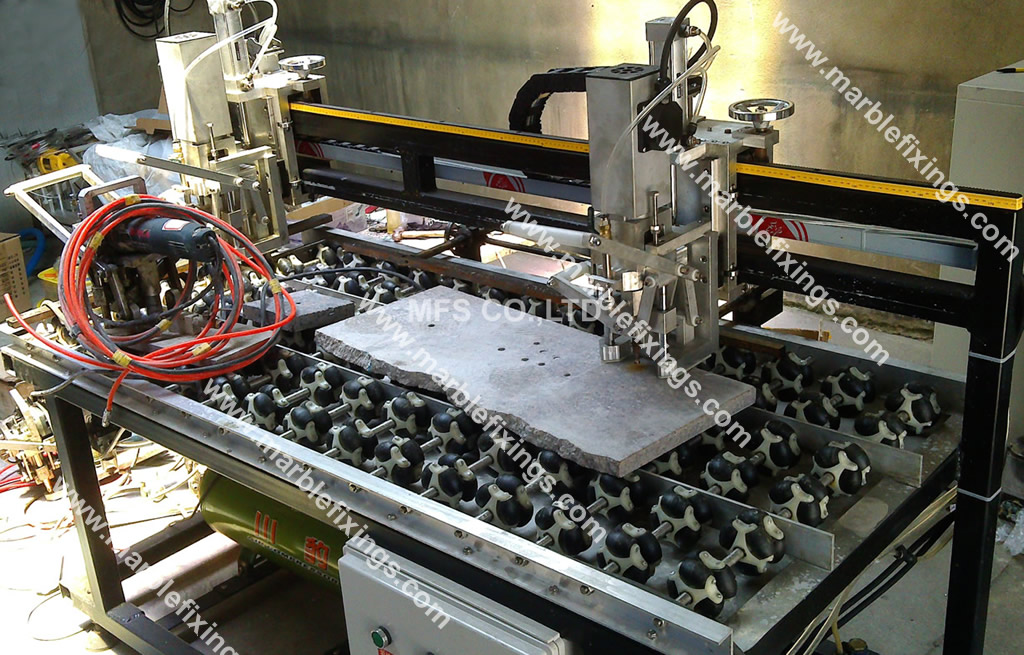

Photos of Undercut Table Drilling Machine:
Note:
1.We have large stock of MFS Table Undercut Bolt Drilling Machine,if you need,we can arrange the delivery immediately.
2. The volts of MFS Table Undercut Drilling Machine is 220V,if you are from USA,Canada,Japan,you should buy a converter for enough power to start well our machine.
3.Please check and study carefully the Instruction of the MFS Table Undercut Drilling Machine before you start it.It is very important.
4.If you still don't know how to use MFS Table Undercut Drilling Machine after receiving it.Please feel free to connect us,our engineer will tell you how to do.
You can check our other undercut anchors,drill bit,drill machine quickly below.
| KUA-01 | KUA-02 | KUA-03 |
| PUA-01 | PUA-02 | PUA-03 |
| Undercut Drill Bit | Portable Machine | Table Machine |
